To troubleshoot the Honeywell S8610U, first check the power supply and ensure the control module is receiving 24 volts AC. Next, verify the ground connections and inspect the flame sensor.
The Honeywell S8610U is a universal intermittent pilot gas ignition control module used in various heating systems. It is essential for ensuring efficient and safe operation by controlling gas flow and ignition. Troubleshooting the S8610U can prevent heating system failures and ensure optimal performance.
Issues often arise from power supply problems, poor ground connections, or faulty flame sensors. By systematically checking these components, users can diagnose and fix common problems. Proper maintenance and timely troubleshooting can extend the lifespan of the system and enhance its reliability.
Common Issues
The Honeywell S8610U is a popular ignition module. It is reliable but can face some common issues. This section explains these issues and how to troubleshoot them.
Ignition Problems
Ignition problems are frequent with the Honeywell S8610U. These issues can stop your system from working. Here are some common causes and solutions:
- Loose connections: Check all wiring connections. Make sure they are tight.
- Dirty flame sensor: Clean the flame sensor with a soft cloth.
- Faulty igniter: Inspect the igniter. Replace it if it is damaged.
- Gas supply: Ensure the gas supply is on and the valve is open.
Error Codes
The Honeywell S8610U displays error codes. These codes help diagnose problems. Here is a table of common error codes and their meanings:
| Error Code | Description | Solution |
|---|---|---|
| 1 Flash | System Lockout | Reset the system. Check for ignition problems. |
| 2 Flashes | Flame not sensed | Clean the flame sensor. Check the gas supply. |
| 3 Flashes | Pressure switch open | Check the pressure switch. Replace if faulty. |
| 4 Flashes | High limit open | Check the high limit switch. Ensure proper airflow. |

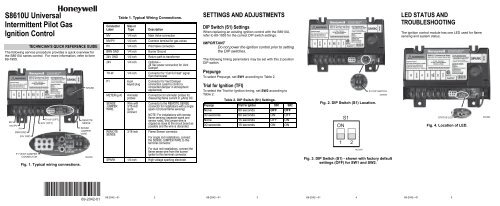

Credit: www.yumpu.com
Initial Checks
Before diving deep into troubleshooting the Honeywell S8610U, start with some initial checks. These steps can help identify simple issues and save time. Focus on the power supply and wiring connections. Doing these checks can solve many common problems.
Power Supply
Ensure the power supply is functioning correctly. Check the following:
- Confirm the unit is plugged in securely.
- Inspect the power cord for any damage.
- Verify that the outlet is working by plugging in another device.
- Check the circuit breaker to ensure it hasn’t tripped.
Use a multimeter to check the voltage. The voltage should match the unit’s specifications. If the power supply is faulty, replace it immediately.
Wiring Connections
Faulty wiring can cause many issues. Follow these steps to inspect the wiring connections:
- Turn off the power to the unit to avoid electric shock.
- Open the unit’s access panel to reach the wiring.
- Examine each wire for signs of wear or damage.
- Ensure all wires are connected to the correct terminals.
- Tighten any loose connections with a screwdriver.
Here is a quick reference table for wiring connections:
| Wire Color | Terminal |
|---|---|
| Red | R |
| White | W |
| Yellow | Y |
| Green | G |
If the wiring is correct and the problem persists, consider other troubleshooting steps.
Ignition Module Reset
The Honeywell S8610U Ignition Module is a critical component in many heating systems. Occasionally, you may need to reset the ignition module to ensure proper operation. This can solve various minor issues and restore normal functionality.
Steps To Reset
- Turn off the power supply to the heating unit.
- Locate the Ignition Module on your heating system.
- Press and hold the reset button for 10 seconds.
- Release the button and wait for the module to reset.
- Turn the power supply back on.
- Check the system for normal operation.
When To Reset
Knowing when to reset the Honeywell S8610U Ignition Module is important. Here are some common scenarios:
- If the heating system fails to start.
- If you notice irregular ignition sequences.
- If the LED indicator shows error codes.
- If you experience frequent system shutdowns.
Resetting the module can often resolve these issues. Always consult your user manual for specific instructions related to your model.
Credit: customer.resideo.com
Sensor And Flame Rod
The Honeywell S8610U ignition module is an essential component in gas heating systems. Two critical parts are the sensor and the flame rod. These elements ensure safe and efficient operation. Proper maintenance of these parts can prevent system failures.
Cleaning The Sensor
Dirty sensors can cause ignition issues. Follow these steps to clean the sensor:
- Turn off the power to the heating system.
- Locate the sensor near the burner assembly.
- Carefully remove the sensor using a screwdriver.
- Use fine-grit sandpaper to gently clean the sensor surface.
- Wipe the sensor with a clean cloth to remove residue.
- Reinstall the sensor and secure it with screws.
Checking The Flame Rod
The flame rod detects the presence of a flame in the burner. Follow these steps to check the flame rod:
- Turn off the heating system’s power supply.
- Locate the flame rod near the burner.
- Remove the flame rod carefully with a screwdriver.
- Inspect the rod for any signs of damage or wear.
- Clean the rod with fine-grit sandpaper if it is dirty.
- If damaged, replace the flame rod with a new one.
- Reinstall the flame rod and secure it with screws.
Maintaining the sensor and flame rod ensures your heating system runs smoothly. Clean and check these components regularly for optimal performance.
Error Codes Interpretation
Understanding error codes on the Honeywell S8610U can be daunting. These codes help identify problems with your furnace. This guide simplifies their interpretation and provides solutions.
Common Error Codes
Here are some common error codes you might encounter:
- 0: System is normal.
- 1: System is in lockout.
- 2: Pressure switch is open.
- 3: Pressure switch is closed.
- 4: Ignition lockout.
- 5: Flame sensed out of sequence.
Solutions For Each Code
Here are some solutions to these common error codes:
| Error Code | Solution |
|---|---|
| 0 | System is normal. No action needed. |
| 1 | Reset the system. Check for obstructions. |
| 2 | Ensure the pressure switch is not blocked. |
| 3 | Check the pressure switch wiring. |
| 4 | Reset the ignition system. Verify the gas valve. |
| 5 | Check the flame sensor. Clean if necessary. |
Understanding these codes helps maintain your furnace. Proper troubleshooting ensures efficient operation.
Regular Maintenance Tips
Regular maintenance of your Honeywell S8610U unit is essential. It ensures optimal performance and longevity. Below are some crucial maintenance tips to keep your unit in top shape.
Cleaning The Unit
Cleaning your Honeywell S8610U is simple. Follow these steps:
- Turn off the power to the unit.
- Remove the cover carefully.
- Use a soft brush to clean dust and debris.
- Wipe the surfaces with a damp cloth.
- Ensure all parts are dry before reassembling.
Regular cleaning prevents dust buildup. It helps the unit run smoothly.
Scheduled Inspections
Scheduled inspections are critical for the Honeywell S8610U. These inspections help identify potential issues early.
| Inspection Task | Frequency |
|---|---|
| Check for loose connections | Monthly |
| Inspect wiring for damage | Quarterly |
| Test the ignition system | Bi-annually |
Following a scheduled inspection routine ensures your unit stays reliable. It also minimizes unexpected breakdowns.
When To Seek Professional Help
Troubleshooting the Honeywell S8610U can be straightforward. But, some issues require expert intervention. Knowing when to call a professional can save time and prevent further damage. Below, we will discuss signs of complex issues and how to choose a qualified technician.
Signs Of Complex Issues
Sometimes, the Honeywell S8610U might present problems beyond basic troubleshooting. Here are key signs:
- Burner Fails to Ignite: If the burner won’t light, there could be a serious issue.
- Frequent Cycling: Constant on-off cycles indicate deeper problems.
- Unusual Noises: Strange sounds mean internal parts may be failing.
- Error Codes: Complex codes on the display require expert interpretation.
- Persistent Faults: Recurring issues even after troubleshooting.
Choosing A Qualified Technician
Finding the right professional ensures your system is in good hands. Follow these steps to choose a qualified technician:
- Check Certifications: Ensure the technician has proper HVAC certifications.
- Read Reviews: Look for positive customer reviews online.
- Ask for References: Request and verify past client references.
- Compare Quotes: Obtain multiple quotes to understand pricing.
- Verify Insurance: Confirm the technician carries liability insurance.
A qualified technician will diagnose and fix complex Honeywell S8610U issues efficiently. This ensures your system operates smoothly and safely.
Credit: www.yumpu.com
Frequently Asked Questions
How Do I Know If My Honeywell Gas Valve Is Bad?
Check for inconsistent heating, strange noises, or a pilot light that won’t stay lit. Inspect for gas leaks.
How Do You Test A Honeywell Igniter?
Test a Honeywell igniter by checking for continuity with a multimeter. Disconnect the igniter first. If the reading is between 10-20 ohms, it’s functional. If not, replace the igniter.
How Does An Intermittent Pilot Ignition Work?
An intermittent pilot ignition system uses an electronic control to ignite the pilot only when needed. It conserves energy and increases efficiency. The control system ignites the pilot, which then lights the main burner. The pilot shuts off once the burner is lit.
This reduces gas usage and emissions.
What Is The Honeywell S8610u?
The Honeywell S8610U is a universal intermittent pilot gas ignition control. It’s used in various heating systems for safe and reliable ignition.
Conclusion
Mastering Honeywell S8610U troubleshooting can save time and money. Follow the steps outlined for efficient results. Regular maintenance ensures the system runs smoothly. Always consult the manual for specific issues. For complex problems, seek professional help. Keep your Honeywell S8610U in top shape for optimal performance.
