Atwood 8535 Iv Dclp Troubleshooting: Expert Tips and Solutions

To troubleshoot the Atwood 8535 IV DCLP, check the power supply and ensure the thermostat is functioning. Verify the gas supply and inspect for any blockages.

The Atwood 8535 IV DCLP is a popular RV furnace known for its reliability and efficiency. Proper troubleshooting ensures the unit operates smoothly, providing optimal heating during your travels. Begin by checking the power supply, as a faulty connection can hinder performance.

Next, ensure the thermostat is set correctly and functioning. Inspect the gas supply line for blockages or leaks, as these can impact the furnace’s ability to ignite. Regular maintenance and timely troubleshooting keep your Atwood 8535 IV DCLP in top condition, ensuring comfort and warmth in your RV.

Credit: frankazoid.com

Common Issues

The Atwood 8535 IV DCLP furnace is a reliable choice for RV owners. Yet, like any appliance, it can face certain issues. Knowing the common problems can help you troubleshoot effectively. Below, we outline some frequent issues and how to address them.

No Power

If your furnace shows no power, check the following:

• Ensure the RV’s main power switch is on.
• Verify the circuit breaker is not tripped.
• Check the fuse; replace if blown.
• Inspect the power cable for any visible damage.

If these steps don’t resolve the issue, you might have a wiring problem. In that case, consult a professional technician.

Inconsistent Heating

Inconsistent heating can make your RV uncomfortable. Here are some potential causes:

1. Thermostat Issues: Ensure the thermostat is set correctly. Replace batteries if needed.
2. Obstructed Airflow: Check vents for blockages. Clean or clear any obstructions.
3. Dirty Burner: A dirty burner can cause uneven heating. Clean the burner assembly as per the manual’s instructions.
4. Gas Supply: Ensure the propane tank is full and the valve is open.

If the problem persists, it could be a faulty component. Consult your RV’s manual or a certified technician for further assistance.

Credit: www.youtube.com

Initial Checks

Before diving into complex fixes, always start with initial checks for your Atwood 8535 Iv Dclp. Initial checks can save time and identify simple issues. These checks ensure the unit is receiving power and connections are solid.

Power Supply

First, verify the power supply. Ensure the unit is plugged in properly. Check if the outlet is functioning. Use a different device to confirm the outlet works.

Inspect the power cord for any signs of damage. A damaged cord can interrupt the power flow. Replace it if needed.

Look at the circuit breaker. Make sure it hasn’t tripped. Reset it if necessary.

Connection Integrity

Next, check the connection integrity. Loose or poor connections can cause issues.

Ensure all wires are securely connected. Look for any signs of fraying or damage. Damaged wires should be replaced immediately.

Verify the unit’s control panel connections. Loose connections here can lead to malfunction.

Finally, check the battery connections. Ensure they are tight and free of corrosion. Clean any corrosion with a baking soda solution.

Check	Action
Power Supply	Inspect outlet, power cord, and circuit breaker.
Connection Integrity	Check all wires, control panel, and battery connections.

Completing these initial checks can resolve many common issues. If problems persist, further troubleshooting may be required.

Error Codes

Understanding error codes is crucial for troubleshooting the Atwood 8535 Iv Dclp. These codes help identify specific issues, enabling quick and effective fixes. This guide will break down how to interpret these codes and highlight common errors.

Interpreting Codes

Error codes appear on the display panel. Each code corresponds to a particular problem with the unit. Knowing what each code means can save time and reduce frustration.

• E1: Indicates a problem with the thermostat.
• E2: Signals a fan malfunction.
• E3: Points to a gas valve issue.
• E4: Shows an ignition failure.

Common Errors

Below is a table of common errors and their possible solutions:

Error Code	Problem	Solution
E1	Thermostat problem	Check thermostat connections.
E2	Fan malfunction	Inspect fan motor.
E3	Gas valve issue	Examine gas valve wiring.
E4	Ignition failure	Verify ignition system.

Thermostat Problems

The Atwood 8535 IV DCLP thermostat can experience various problems. These issues can affect the performance of your RV’s heating system. Understanding and troubleshooting these problems is essential. This section will focus on common thermostat problems and their solutions.

Calibration

Calibration ensures your thermostat reads the correct temperature. If your thermostat is not calibrated, your heater may not work correctly.

Follow these steps to check and calibrate your thermostat:

1. Remove the thermostat cover.
2. Locate the calibration screw inside the unit.
3. Use a small screwdriver to adjust the screw.
4. Turn the screw slightly clockwise or counterclockwise.
5. Check the temperature reading on the thermostat.
6. Repeat the adjustment until the reading matches the actual room temperature.

Ensure the room is at a stable temperature for accurate calibration. This simple process can improve your thermostat’s accuracy and efficiency.

Replacement

If calibration does not fix the issue, you may need to replace the thermostat. Follow these steps to replace the Atwood 8535 IV DCLP thermostat:

1. Turn off the power to your heating system.
2. Remove the old thermostat from the wall.
3. Disconnect the wires from the back of the old unit.
4. Connect the wires to the new thermostat.
5. Secure the new thermostat to the wall.
6. Turn the power back on.

Ensure all connections are secure and correct. Test the new thermostat to ensure it works properly.

Remember, a properly functioning thermostat is crucial for your RV’s heating system. Regular maintenance and timely replacement can prevent many issues.

Gas Supply Issues

Understanding gas supply issues in your Atwood 8535 IV DCLP furnace is crucial. These problems can cause your furnace to malfunction. This section helps you identify and solve gas supply issues.

Leak Detection

Gas leaks are dangerous and should be addressed immediately. Use a soap and water solution to detect leaks. Apply the solution to all gas connections and watch for bubbles. Bubbles indicate a leak.

Steps to check for leaks:

• Turn off the gas supply.
• Mix soap and water in a spray bottle.
• Spray the solution on gas connections.
• Look for bubbles forming.

If you find a leak, tighten the connection. If the leak persists, replace the faulty component. Always ensure all connections are secure.

Valve Function

The gas valve controls gas flow to the furnace. A faulty valve can cause gas supply issues. Check if the valve is functioning properly.

Symptom	Possible Issue
No gas flow	Valve stuck in closed position
Unstable flame	Valve not regulating gas properly

Steps to check valve function:

1. Turn off the furnace.
2. Disconnect the gas supply.
3. Inspect the valve for signs of wear or damage.
4. Test the valve manually to ensure it opens and closes.

Replace the valve if it is not working correctly. A functional valve ensures a steady gas supply to your furnace.

Burner Malfunctions

Experiencing burner malfunctions in your Atwood 8535 Iv Dclp can be frustrating. These issues can affect your heater’s performance. Here, we’ll discuss common problems and solutions.

Cleaning Burners

Cleaning the burners is crucial for optimal performance. Dirt and debris can block gas flow. Follow these steps to clean your burners:

1. Turn off the gas supply.
2. Remove the burner assembly.
3. Use a brush to clean dirt and debris.
4. Check for any visible damage.
5. Reassemble the burner carefully.

Regular cleaning prevents blockages and ensures efficient operation. Inspect the burners monthly. A clean burner burns fuel efficiently and reduces energy waste.

Ignition Troubles

Ignition problems can prevent your heater from starting. These issues often stem from dirty igniters or connections. To troubleshoot ignition problems, follow these steps:

1. Check if the igniter is clean.
2. Ensure all connections are secure.
3. Test the igniter for sparks.
4. Replace the igniter if it’s faulty.

Ignition troubles can also occur due to incorrect settings. Ensure the thermostat is set correctly. If problems persist, consult a technician.

Here is a quick summary of common burner malfunctions and their solutions:

Problem	Solution
Dirty burners	Clean the burners regularly.
Ignition failure	Check and clean the igniter.
Loose connections	Secure all connections.

Regular maintenance can prevent burner malfunctions. Always ensure the burner and igniter are clean and functional.

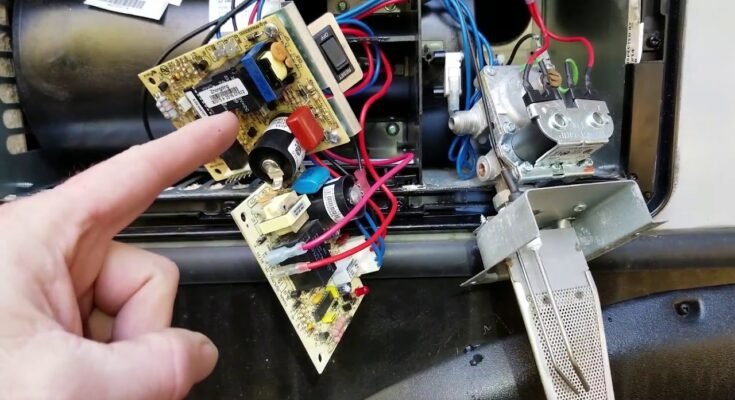

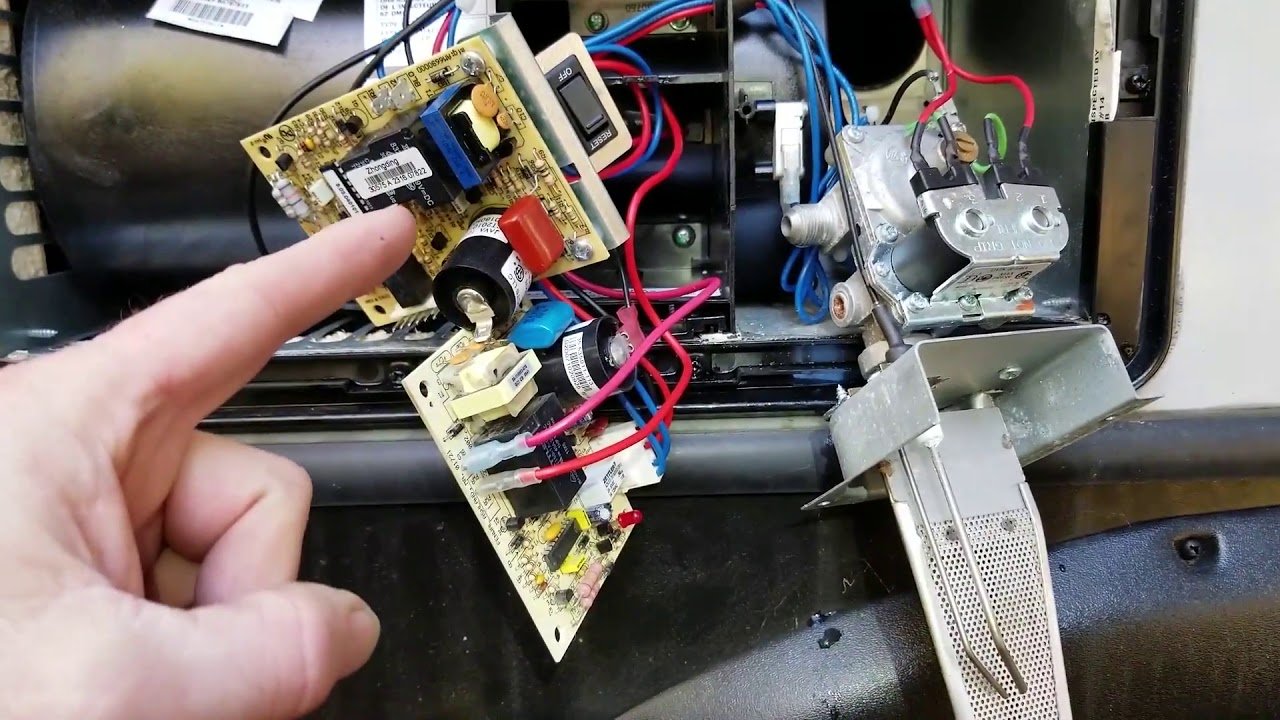

Control Board Failures

The control board in the Atwood 8535 IV DCLP is vital. It manages the furnace’s operations. Sometimes, this control board can fail. Knowing how to troubleshoot is essential. Here, we explore common control board issues.

Reset Procedures

Resetting the control board often solves minor issues. Follow these steps:

1. Turn off the furnace.
2. Locate the control board.
3. Press the reset button on the board.
4. Wait for a few seconds.
5. Turn the furnace back on.

If the furnace starts normally, the issue might be fixed. If not, further steps are needed.

Board Replacement

If resetting does not work, replacing the control board may be necessary. Here is how you can do it:

1. Turn off all power to the furnace.
2. Remove the control board cover.
3. Disconnect all wires from the old board.
4. Install the new control board.
5. Reconnect all wires to the new board.
6. Replace the cover and turn on the power.

Ensure the new board is compatible with your furnace model. Always follow the manufacturer’s instructions.

Maintenance Tips

Maintaining your Atwood 8535 Iv Dclp is essential for its longevity. Regular maintenance ensures efficient performance and prevents unexpected issues. Follow these maintenance tips to keep your unit in top shape.

Regular Inspections

Conducting regular inspections can prevent potential problems. Check the unit every month.

• Inspect all electrical connections for wear and tear.
• Look at the gas lines for any leaks.
• Ensure the ventilation system is clear of obstructions.

Use a flashlight to check hidden areas. Clean any dust or debris you find.

Component	Inspection Frequency
Electrical Connections	Monthly
Gas Lines	Monthly
Ventilation System	Monthly

Seasonal Care

Seasonal care keeps your unit functioning through different weather conditions. Follow these steps for each season.

1. Spring: Clean the exterior and check for winter damage.
2. Summer: Ensure the air filters are clean and replace if needed.
3. Fall: Remove leaves and debris from the unit’s surroundings.
4. Winter: Insulate the unit to protect against freezing temperatures.

Regular seasonal care helps your Atwood 8535 Iv Dclp work efficiently.

Always follow the manufacturer’s guidelines for specific maintenance tasks.

Credit: frankazoid.com

Frequently Asked Questions

How Do I Know If My Rv Furnace Control Board Is Bad?

Check for unresponsive thermostats, erratic heat cycles, or no heat output. Inspect for visible damage or burnt components.

Where Is The Reset Button On An Atwood Furnace?

The reset button on an Atwood furnace is typically located behind the furnace’s front panel. Remove the panel to access it.

How Do I Know If My Rv Furnace Sail Switch Is Bad?

Check for airflow blockages, listen for the furnace fan starting, and see if it shuts down quickly.

Where Is The Sail Switch On The Atwood 8535?

The sail switch on the Atwood 8535 is located near the blower assembly. It ensures proper airflow for ignition.

Conclusion

Troubleshooting the Atwood 8535 IV DCLP can be straightforward with the right steps. Follow the guide for effective solutions. Regular maintenance can prevent common issues. Keep your system running smoothly by addressing problems early. Enjoy a reliable and efficient heating experience.

Your comfort and safety matter most.
